TR-Vorsatz 24

Paillard AG; St. Croix

  • Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 12680

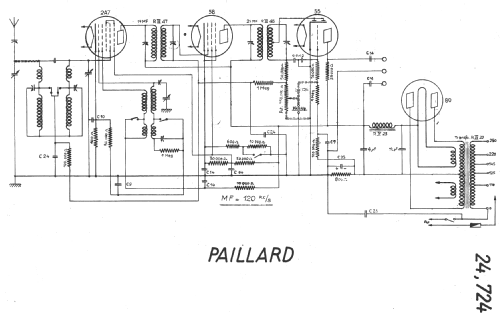

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 120 kHz
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TR-Vorsatz 24 - Paillard AG; St. Croix
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • für TR;Ch=7-24,ohne Endstufe
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
