4-Band 9-Transistor T-100D

4-Band 9-Transistor T-100D; Panasonic, (ID = 806373) Radio

4-Band 9-Transistor T-100D; Panasonic, (ID = 806374) Radio
4-Band 9-Transistor T-100D; Panasonic, (ID = 2240998) Radio 4-Band 9-Transistor T-100D; Panasonic, (ID = 2240996) Radio
4-Band 9-Transistor T-100D; Panasonic, (ID = 2240997) Radio 4-Band 9-Transistor T-100D; Panasonic, (ID = 1253953) Radio

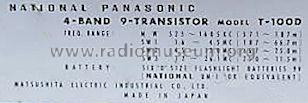

4-Band 9-Transistor T-100D; Panasonic, (ID = 1253955) Radio 4-Band 9-Transistor T-100D; Panasonic, (ID = 623952) Radio
4-Band 9-Transistor T-100D; Panasonic, (ID = 1147425) Radio 4-Band 9-Transistor T-100D; Panasonic, (ID = 1147426) Radio

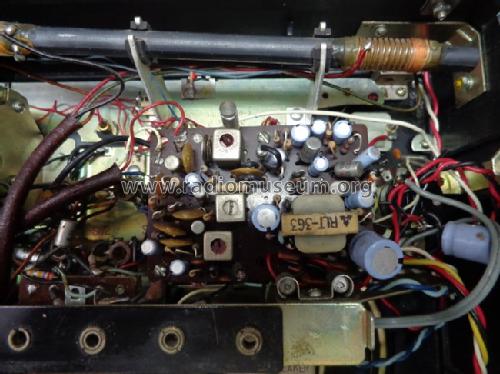

4-Band 9-Transistor T-100D; Panasonic, (ID = 1717814) Radio 4-Band 9-Transistor T-100D; Panasonic, (ID = 1717815) Radio
Use red slider bar for more.
4-Band 9-Transistor T-100D; Panasonic, (ID = 2240998) Radio

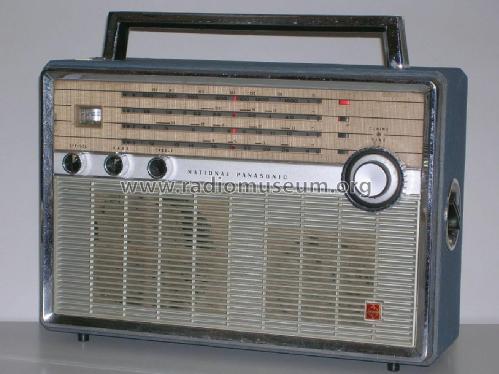

Panasonic,: 4-Band 9-Transistor T-100D [Radio] ID = 2240998 654x753

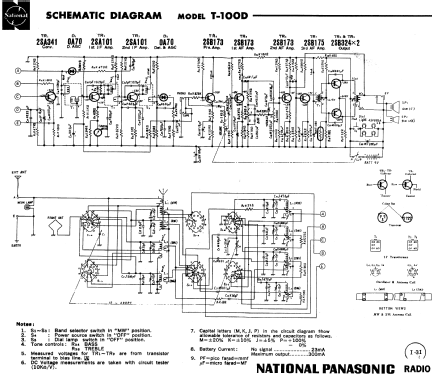

Select picture or schematic to display from thumbnails on the right and click for download.
For model 4-Band 9-Transistor T-100D, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1967 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: 2SA341 2SA101 2SA101 2SA173 2SA173 2SA173 2SB175 2SB324 2SB324
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: 4-Band 9-Transistor T-100D - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 280 x 120 mm / 13.4 x 11 x 4.7 inch
Notes

National-Panasonic T-100D 4-Band 9-Transistor;
Coverage:
MW: ~525 - 1605 KHz,
3 SW bands SW1: 1.6 to 4.5 MHz,
SW2: 4.5 - 12.0 MHz,
SW3: 12 - 26.1 MHz,

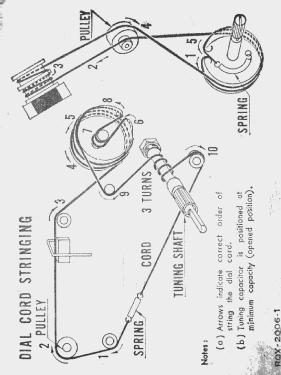

spread & main tuning, tuning meter, bass & treble controls, 5" woofer & 3.5" tweeter, dial light, frame antenna, terminals for ext. antenna & earth in, jack terminals for phono in, tape rec. out & earphones, World Time Table on rear side, made in Japan.
Note:
Known differences between National T-100 & National-Panasonic T-100D are slightly  different frequency ranges, a tape out jack instead of a I/O switch on rear side & an additional battery for dial light for the other model.

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by a member from A. See "Data change" for further contributors.
