IC FET FM/AM 4 CHannel Stereo RE-8840C

IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836232) Radio IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836233) Radio
IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836234) Radio IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836235) Radio
IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836236) Radio IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 2184223) Radio
IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 2184224) Radio IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 2184225) Radio
Use red slider bar for more.

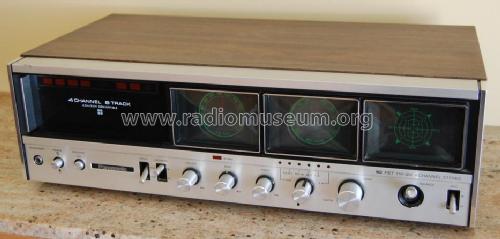

IC FET FM/AM 4 CHannel Stereo RE-8840C; Panasonic, (ID = 1836232) Radio
Panasonic,: IC FET FM/AM 4 CHannel Stereo RE-8840C [Radio] ID = 1836232 933x447
Select picture or schematic to display from thumbnails on the right and click for download.
For model IC FET FM/AM 4 CHannel Stereo RE-8840C, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Special Tape or Cassette-Format
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (max.)
from Radiomuseum.org Model: IC FET FM/AM 4 CHannel Stereo RE-8840C - Panasonic, Matsushita,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 20.25 x 6.5 x 11 inch / 514 x 165 x 279 mm
Notes

This 4 Channel AM-FM-FM Stereo receiver has a Quadrophonic  8-track Player that is detachable for use in an automobile. There is also a 4 Channel Multiplex Out jack.

Net weight (2.2 lb = 1 kg) 21 lb (21 lb 0 oz) / 9.534 kg

Model page created by George Papaiz. See "Data change" for further contributors.
