KE6

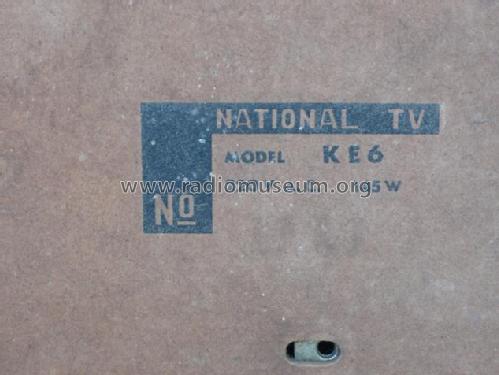

KE6; Panasonic, (ID = 1626851) Television KE6; Panasonic, (ID = 1626853) Television
KE6; Panasonic, (ID = 1626855) Television KE6; Panasonic, (ID = 1626856) Television
Use red slider bar for more.

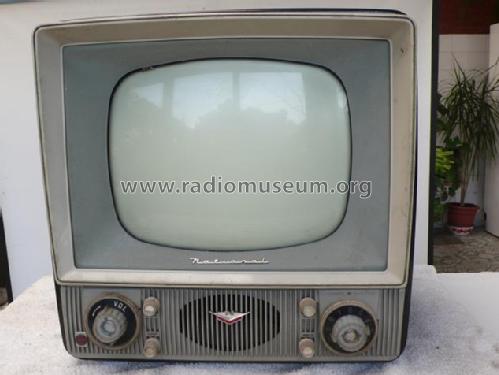

KE6; Panasonic, (ID = 1626851) Television
Panasonic,: KE6 [Television] ID = 1626851 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model KE6, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1958 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 13: 4GK5 7GS7 PCL82 PCF80 6J7 6J7 6J7 12BY7 PCL82 PCF80 PL36 PY88 1X2B
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 3 W (3.5 W max.)
from Radiomuseum.org Model: KE6 - Panasonic, Matsushita,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 460 x 460 mm / 18.1 x 18.1 x 18.1 inch
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 4'500.00 PTE

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
