National Panasonic 2 Band 8 Transistor T-801J

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1962
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277846

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Batteries / addl. power jack / AA: 4 x 1,5 / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: National Panasonic 2 Band 8 Transistor T-801J - Panasonic, Matsushita,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 6.3 x 3.5 x 1.5 inch / 160 x 89 x 38 mm
  • Notes

  • National Model T-801

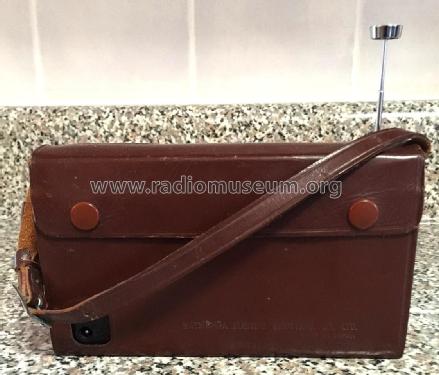

    Dual-wave, eight transistor, one diode portable with all accessories as for Model T-44.

    Features fine tuning, two step tone control, dial light for tuning in the dark and large 2½" x 4" speaker.

    Specification: frequency range, M/W 540 - 1600 kC/s (Hz), S/W 7 -18 MC/s (MHz). (MINGAY'S PRICE SERVICE)

    The first Japanese model under the brand name "National Panasonic".

    See also models T-801H & T-801D.

  • Net weight (2.2 lb = 1 kg)
  • 1 lb 5 oz (1.313 lb) / 0.596 kg
  • Price in first year of sale
  • 40.95 AUS £
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
