Panapet (Ball and Chain radio) R-70S

Panapet R-70S; Panasonic, (ID = 1186581) Radio Panapet R-70S; Panasonic, (ID = 1186582) Radio
Panapet R-70S; Panasonic, (ID = 1186583) Radio Panapet R-70S; Panasonic, (ID = 1186584) Radio
Panapet R-70S; Panasonic, (ID = 1186585) Radio Panapet R-70S; Panasonic, (ID = 1186586) Radio
Panapet R-70S; Panasonic, (ID = 1366409) Radio
Use red slider bar for more.
Panapet R-70S; Panasonic, (ID = 1186581) Radio
Panasonic,: Panapet R-70S [Radio] ID = 1186581 933x872
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panapet (Ball and Chain radio) R-70S, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay Auction User bokluci Item No 14019110564

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1972 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Panapet R-70S - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 110 x 110 x 110 mm / 4.3 x 4.3 x 4.3 inch
Notes

National Panasonic Panapet model R-70/S: Colors in red, blue, white, yellow or green. The same colors as the first edition Panapet R-70 from 1970. Colors may change a bit over time, but violet - as we show can either be an additional color or was afterwards painted.
Note the different battery type and power output to the standard R-70. We can only assume that Panapet R-70S followed about 1972 and most probably was sold for more than one season.

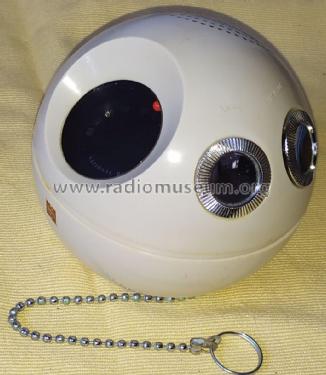

From " future-forms.com " for the first series, National Panasonic Panapet R-70: "The quirky ‘Panapet’, produced by Panasonic in 1970 to commemorate the World Expo in Osaka, was a ball-shaped radio that hung on a chain. Two chrome-plated dials on the surface controlled tuning and volume, and the tuning display itself was set into the ball. Initially released as an AM-only radio, customers could choose from red, yellow, white, blue and avocado green versions.

First exhibited at the World Expo in Osaka, the Panapet perfectly captured the playful pop spirit of the early 1970s. With its boldly futuristic spherical design and space age styling, it was an instant hit with the young and youthful-at-heart when it burst onto the scene."

Net weight (2.2 lb = 1 kg) 0.410 kg / 0 lb 14.4 oz (0.903 lb)
Mentioned in -- Original prospect or advert ((Region?) National Panasonic "Radios & Transceivers" ±1971)
Literature/Schematics (1) Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.140 (november/december 2017) page 16-21)
