Panapet (Ball and Chain radio) R-70

Panapet R-70; Panasonic, (ID = 487816) Radio

Panapet R-70; Panasonic, (ID = 2091938) Radio
Panapet R-70; Panasonic, (ID = 250371) Radio Panapet R-70; Panasonic, (ID = 106682) Radio
Panapet R-70; Panasonic, (ID = 106681) Radio Panapet R-70; Panasonic, (ID = 106680) Radio
Panapet R-70; Panasonic, (ID = 106684) Radio Panapet R-70; Panasonic, (ID = 251625) Radio
Panapet R-70; Panasonic, (ID = 251626) Radio Panapet R-70; Panasonic, (ID = 251627) Radio
Panapet R-70; Panasonic, (ID = 670874) Radio Panapet R-70; Panasonic, (ID = 1232652) Radio
Use red slider bar for more.
Panapet R-70; Panasonic, (ID = 250371) Radio
Panasonic,: Panapet R-70 [Radio] ID = 250371 640x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panapet (Ball and Chain radio) R-70, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1970–1972 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA102 2SA101 2SA101 2SB171 2SB172 2SB172
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: Panapet R-70 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 110 x 110 x 110 mm / 4.3 x 4.3 x 4.3 inch
Notes

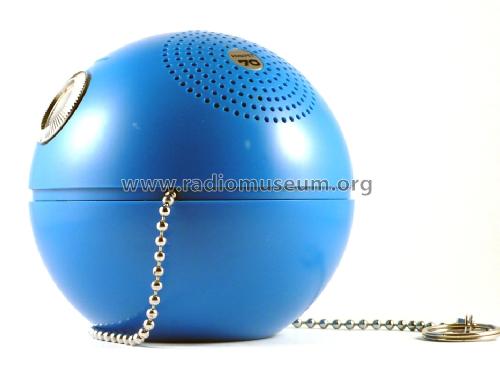

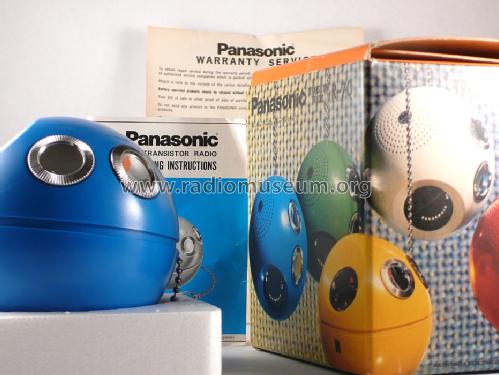

The Panapet R-70 was on the market for a longer time than one season, but we don't know when the follower, model Panapet R-70S arrived. The original 5 colors were red, blue, green, yellow and white. The radios have a socket for an ear phone and incorporated is a ferrit antenna. Since the models have a chain, they are also called "Ball and Chain radio". The main difference is the battery: R-70 2 x 1.5 V, R-70S with a 9 volt battery.

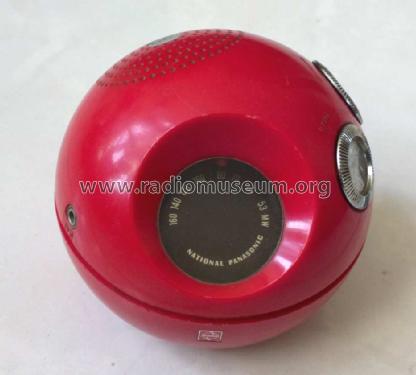

From " future-forms.com ": "The quirky ‘Panapet’, produced by Panasonic in 1970 to commemorate the World Expo in Osaka, was a ball-shaped radio that hung on a chain. Two chrome-plated dials on the surface controlled tuning and volume, and the tuning display itself was set into the ball. Initially released as an AM-only radio, customers could choose from red, yellow, white, blue and avocado green versions.

First exhibited at the World Expo in Osaka, the Panapet perfectly captured the playful pop spirit of the early 1970s. With its boldly futuristic spherical design and space age styling, it was an instant hit with the young and youthful-at-heart when it burst onto the scene."

Net weight (2.2 lb = 1 kg) 0.4 kg / 0 lb 14.1 oz (0.881 lb)
Collectors' prices
Source of data -- Original prospect or advert
Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n.140 (november/december 2017) page 16-21)

Model page created by Peter Böhm. See "Data change" for further contributors.
