Panasonic FM-AM 2- Band Receiver RF-2400D

Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332003) Radio Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332099) Radio
Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332004) Radio Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332005) Radio
Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332006) Radio Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332094) Radio
Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332096) Radio Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332098) Radio
Use red slider bar for more.

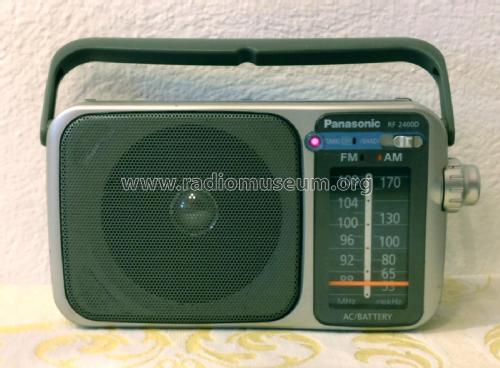

Panasonic FM-AM 2- Band Receiver RF-2400D; Panasonic, (ID = 2332003) Radio
Panasonic,: Panasonic FM-AM 2- Band Receiver RF-2400D [Radio] ID = 2332003 1400x1033
Select picture or schematic to display from thumbnails on the right and click for download.
For model Panasonic FM-AM 2- Band Receiver RF-2400D, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2008 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 459/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 60Hz, 120 / AA: 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.77 W (unknown quality)
from Radiomuseum.org Model: Panasonic FM-AM 2- Band Receiver RF-2400D - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 234 x 122 x 82 mm / 9.2 x 4.8 x 3.2 inch
Notes

Panasonic FM-AM 2-Band Receiver RF-2400D is a portable mains or battery operated radio. 3,5 mm earphone jack, telescopic antenna for FM, ferrite rod antenna for AM.

See also Panasonic FM-AM 2- Band Receiver RF-2400 for 230 V mains voltage.

Made in Indonesia.

Net weight (2.2 lb = 1 kg) 0.670 kg / 1 lb 7.6 oz (1.476 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
