For model RE-7671C & RE-767C, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Manitoba Electrical Museum collection

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 21:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: RE-7671C & RE-767C - Panasonic, Matsushita,
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 16.5 x 3.25 x 8.5 inch / 419 x 83 x 216 mm

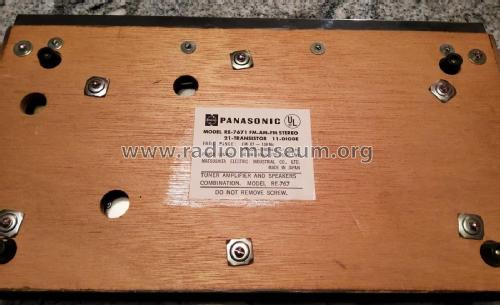

Notes FM 87-108MHz; A.M.525-1650kHz 120 V, 15W. Panasonic by Matsushita Industrial Company Limited. Tuner, Amplifier and speakers combination Model RE-767C. Speakers: 2, 6" dia. in boxes 8.25"w 9.75"h, 8.5"d (inches)

Model page created by Neil Van Dusen. See "Data change" for further contributors.
