Super 6 W 060/065 Holz
Use red slider bar for more.
Panradio A - siehe: Super 6 W 060/065 [Radio] ID = 1609553 675x900
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1933/1934 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 7: E455 E409 E455 E444 E452T E443H 1805 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 128 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-240 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: Super 6 W 060/065 [Holz] - Panradio A - siehe AUCH |

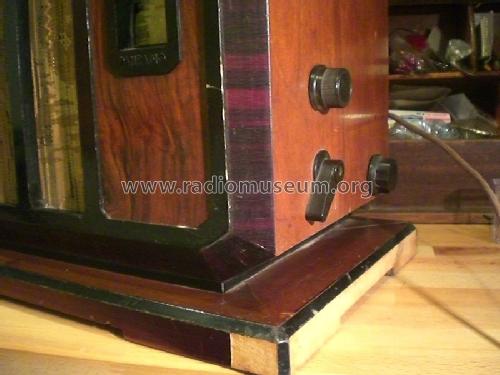

| Material | Wooden case |
| Shape | Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges. |
| Dimensions (WHD) | 480 x 510 x 280 mm / 18.9 x 20.1 x 11 inch |
| Net weight (2.2 lb = 1 kg) | 17 kg / 37 lb 7.1 oz (37.445 lb) |
| Price in first year of sale | 630.00 öS |
| External source of data | E. Erb 3-907007-36-0 |
| Source of data | Radiokatalog Band 2, Ernst Erb |
| Mentioned in | RADIOBOTE, Österr. (Heft 8/2007, S.3 ff, Gerätebeschreibung) |
