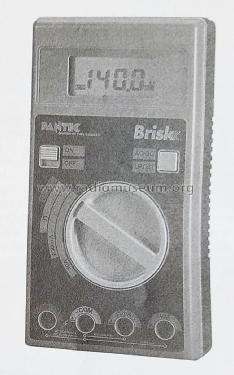

Brisk Multimeter
Pantec, Division of Carlo Gavazzi
- Country
- Italy
- Manufacturer / Brand
- Pantec, Division of Carlo Gavazzi
- Year
- 1986 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 322481
REDE nº 377, Abril 1986.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Brisk Multimeter - Pantec, Division of Carlo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 155 x 80 x 30 mm / 6.1 x 3.1 x 1.2 inch
- Notes
-
Multímetro autorango.
Display numérico LCD de 3 y medio dígitos, 10 mm de altura. Símbolos mV, V, mA, A Ohm, Kohm, LPohm, AUTO, BATT, AC.
- DC: 100 µV - 1.000 V
- AC: 1 mV - 600 V
- CC: 100 µA - 10 A
- CA: 100 µA - 10 A
- Ohm: 0.1 - 2.000 kΩ
Possiede anche test di continuità acustica nella portata ohm
Uguale a Beckman Circuitmate DM77
- Net weight (2.2 lb = 1 kg)
- 0.270 kg / 0 lb 9.5 oz (0.595 lb)
- Mentioned in
- -- Original prospect or advert (REDE nº377 Abril, 1986)
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
