For model PL-1100, Pars Electric Manufacturing Co. (Toshiba/Grundig); Tehran

Country:  Iran
Manufacturer / Brand:  Pars Electric Manufacturing Co. (Toshiba/Grundig); Tehran
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner

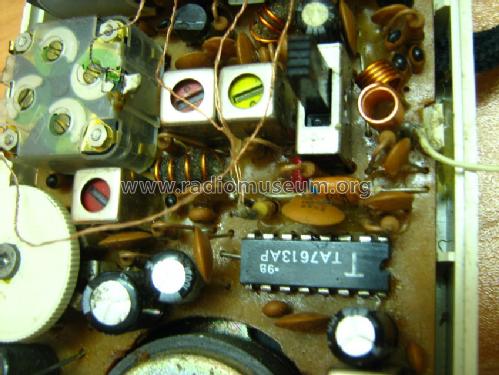

Semiconductors (the count is only for transistors) 2: 2SC1923 2SC1923 TA7613
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.15 W (undistorted)
from Radiomuseum.org Model: PL-1100 - Pars Electric Manufacturing Co
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 126 x 71 x 37 mm / 5 x 2.8 x 1.5 inch
Notes

Compare with the similar model Toshiba RP-1150F.

Model page created by Daniel Rosha. See "Data change" for further contributors.
