TP-623

TP-623; Pars Electric (ID = 1396580) Misc TP-623; Pars Electric (ID = 1396582) Misc
TP-623; Pars Electric (ID = 1396583) Misc TP-623; Pars Electric (ID = 1396585) Misc
TP-623; Pars Electric (ID = 1396586) Misc TP-623; Pars Electric (ID = 1396587) Misc
TP-623; Pars Electric (ID = 1396588) Misc TP-623; Pars Electric (ID = 1396589) Misc
TP-623; Pars Electric (ID = 1396590) Misc TP-623; Pars Electric (ID = 1396591) Misc
Use red slider bar for more.
TP-623; Pars Electric (ID = 1396580) Misc
Pars Electric: TP-623 [Misc] ID = 1396580 672x1300
Select picture or schematic to display from thumbnails on the right and click for download.
For model TP-623, Pars Electric Manufacturing Co. (Toshiba/Grundig); Tehran

Country:  Iran
Manufacturer / Brand:  Pars Electric Manufacturing Co. (Toshiba/Grundig); Tehran
Year: 1991 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 1: 2SC875 MC44107
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: TP-623 - Pars Electric Manufacturing Co
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 135 x 23 mm / 2.6 x 5.3 x 0.9 inch
Notes

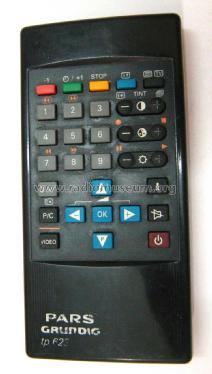

This remote is similar to Tele-Pilot TP 623 29622-057.61 but under name: Pars Grundig, IC: MC44107, made in Iran, by Pars Electric company (Pars Toshiba/Grundig)

Model page created by Daniel Rosha. See "Data change" for further contributors.



All listed radios etc. from Pars Electric Manufacturing Co. (Toshiba/Grundig); Tehran
Here you find 11 models, 11 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
