• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97621

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 485 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 90; 110; 130; 150; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

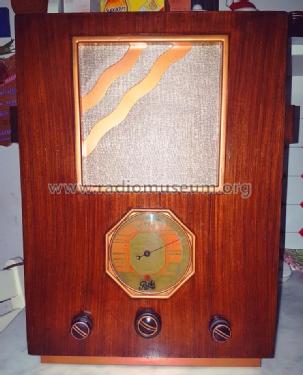

  • Model: 60 Ch= 435 - Pathé Radio, Pathé Frères Path
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 380 x 490 x 270 mm / 15 x 19.3 x 10.6 inch
  • Notes
  • 3 gammes d'ondes PO, GO et OC.

    Ébénisterie en palissandre des Indes, garnitures en cuivre rouge.

    Équivalent au Marconi 30 et HMV Belge 654.

  • Net weight (2.2 lb = 1 kg)
  • 14.9 kg / 32 lb 13.1 oz (32.819 lb)
  • Price in first year of sale
  • 1,825.00 FRF
  • Mentioned in
  • -- Original prospect or advert (Les Ailes, 03.10.1935)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
