• Year
  • 1952 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223471

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

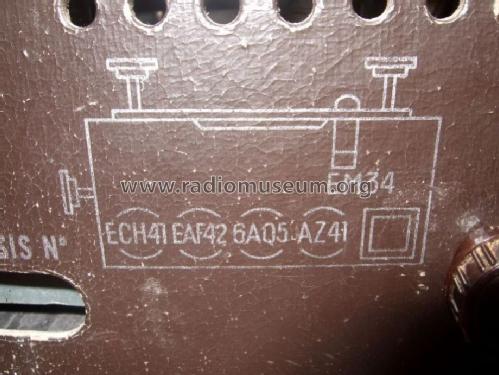

  • Model: 51 Ch= 551 [output tube 6AQ5] - Marconi marque, Cie. Fse. du

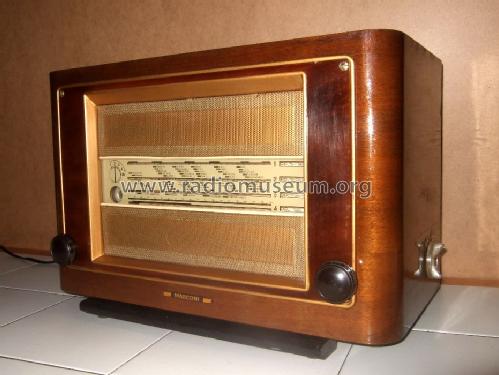

  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 450 x 300 x 250 mm / 17.7 x 11.8 x 9.8 inch
  • Notes
  • 4 gammes d'ondes: GO 1000 à 2000 m, PO 165 à 575 m, OC 16 à 51 m, OC étalées sur 50 m. Prises antenne terre et pick-up. Lampe cadran : 220-230 V, 25 W, E14.

    Ébénisterie noyer verni, façade en métal laqué bruin avec décoration or, ou en métal doré.

    Le numéro du type 51 ne figure pas dans l'appareil.
    Ce modèle existe également avec lampe EL41 sur l'étage de sortie.

  • Net weight (2.2 lb = 1 kg)
  • 7.9 kg / 17 lb 6.4 oz (17.401 lb)
  • Author
  • Model page created by Bekir Yurdakul. See "Data change" for further contributors.
