- Country
- United States of America (USA)
- Manufacturer / Brand
- Patterson Radio Co. / Electric Co.; Los Angeles, CA
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 50285

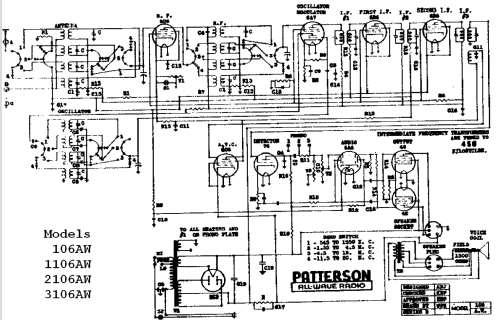

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 458 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1106AW - Patterson Radio Co. / Electric
- Shape
- Tablemodel, with any shape - general.
- Notes
- BC (550-1500 kHz), TROP (1600-4500 kHz), SW1 (4.5-12.0 MHz) and SW2 (11.5-20.0 MHz) bands. Push-pull audio amplifier. 8 or 12 inch speaker.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Rider's 6-2, 6-3, 6-4
