PR-16 Series C

PR-16 ; Patterson Radio Corp (ID = 648257) Commercial Re
PR-16 ; Patterson Radio Corp (ID = 648715) Commercial Re PR-16 ; Patterson Radio Corp (ID = 1706286) Commercial Re
PR-16 ; Patterson Radio Corp (ID = 1706288) Commercial Re PR-16 ; Patterson Radio Corp (ID = 1706289) Commercial Re
PR-16 ; Patterson Radio Corp (ID = 1706290) Commercial Re PR-16 ; Patterson Radio Corp (ID = 1706291) Commercial Re
PR-16 ; Patterson Radio Corp (ID = 1706292) Commercial Re PR-16 ; Patterson Radio Corp (ID = 1706293) Commercial Re
PR-16 ; Patterson Radio Corp (ID = 1706294) Commercial Re PR-16 ; Patterson Radio Corp (ID = 1706295) Commercial Re
Use red slider bar for more.
PR-16 ; Patterson Radio Corp (ID = 648715) Commercial Re

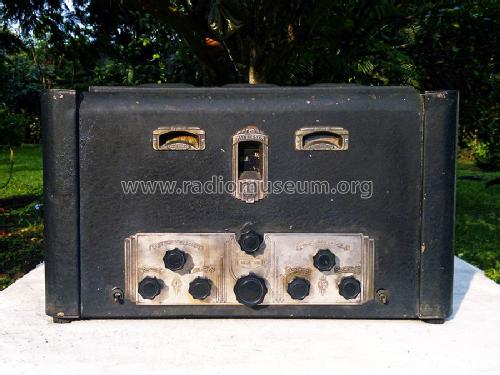

Patterson Radio Corp: PR-16 [Commercial Re] ID = 648715 351x241
Select picture or schematic to display from thumbnails on the right and click for download.
For model PR-16 Series C, Patterson Radio Corp.; Los Angeles:
Use authorized - see .oldradios.co.nz

Country:  United States of America (USA)
Manufacturer / Brand:  Patterson Radio Corp.; Los Angeles
Year: 1936 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 16: 6D6 6D6 6C6 6C6 6D6 6D6 6D6 75 76 76 6A6 76 76 42 42 5Z3
Main principle Superhet with RF-stage; ZF/IF 458 kHz; 3 AF stage(s)
Tuned circuits 11 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 18 W (unknown quality)
from Radiomuseum.org Model: PR-16 [Series C] - Patterson Radio Corp.; Los
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 300 x 340 mm / 20.1 x 11.8 x 13.4 inch
Notes BC (535-1550 kHz), TROP (1500-3600 kHz), SW1 (3.2-7.5 MHz), SW2 (7.5-17.0 MHz) and SW3 (16.0-37.0 MHz) bands. Selective IF amplifier with crystal filter. BFO and S-meter. Push-pull audio amplifier.
Net weight (2.2 lb = 1 kg) 48 lb 0 oz (48 lb) / 21.792 kg
Price in first year of sale 101.70 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in Rider's 7-1, 7-2, 7-3
