Oszillograph Typ 147

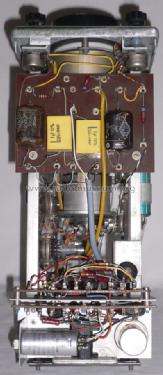

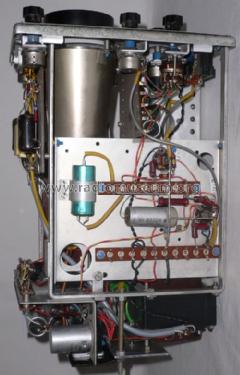

Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766479) Equipment Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766480) Equipment
Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766481) Equipment Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766482) Equipment
Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766483) Equipment Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766484) Equipment
Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766485) Equipment
Use red slider bar for more.
Oszillograph Typ 147; PEK, Paul E. Klein (ID = 766479) Equipment
PEK, Paul E. Klein: Oszillograph Typ 147 [Equipment] ID = 766479 700x744
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszillograph Typ 147, PEK, Paul E. Klein Electronic; Tettnang

Country:  Germany
Manufacturer / Brand:  PEK, Paul E. Klein Electronic; Tettnang
Year: 1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 5: ECC81 ECC81 ECC81 ECF80 DG7-31
schematic requested
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszillograph Typ 147 - PEK, Paul E. Klein Electronic;
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 130 x 210 x 310 mm / 5.1 x 8.3 x 12.2 inch
Notes PEK Typ 147 Service-Oszillograph.
Hergestellt von der Firma Paul E. Klein Electronic,
Elektronenstrahl-Sichtgeräte, Tettnang/Bodensee.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)

Model page created by Peter Gruschka. See "Data change" for further contributors.
