Opera V11 1950 model

Penton Radiofabrik, Svenska AB Banton; Stockholm

Data
Forum
Pictures
Collections

  • Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 255213

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Opera V11 [1950 model] - Penton Radiofabrik, Svenska AB
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1100 x 965 x 465 mm / 43.3 x 38 x 18.3 inch
  • Notes

  • Push-pull output stage. Separate tone control for bass and treble.

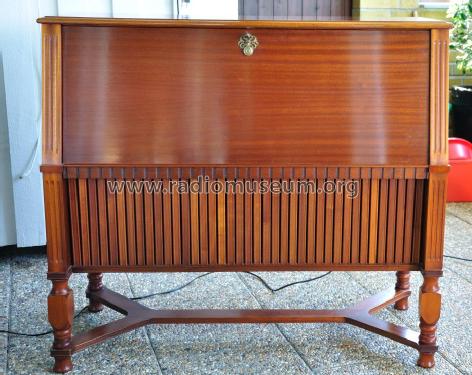

    Secretary style cabinet in Honduras mahogany or oak with antique finish, with a roll-cover sound-proofed compartment for the optional record changer (not included in price).

    Three loudspeakers: 10, 8 and 7 inch. The 7" speaker is located at the upper front and has a seperate volume control knob.

    It's unknown if there was a choice of record players available to choose from or of this model was generally sold without.

  • Net weight (2.2 lb = 1 kg)
  • 60 kg / 132 lb 2.5 oz (132.159 lb)
  • Price in first year of sale
  • 1,200.00 SEK
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Ola Gröndalen. See "Data change" for further contributors.
