Portarama MK 2

Portarama MK 2; Perdio Electronics (ID = 2027802) Television

Portarama MK 2; Perdio Electronics (ID = 2027804) Television

Portarama MK 2; Perdio Electronics (ID = 2027805) Television

Portarama MK 2; Perdio Electronics (ID = 2027806) Television

Portarama MK 2; Perdio Electronics (ID = 2027807) Television

Portarama MK 2; Perdio Electronics (ID = 2027808) Television

Portarama MK 2; Perdio Electronics (ID = 2027881) Television

Portarama MK 2; Perdio Electronics (ID = 2027882) Television
Portarama MK 2; Perdio Electronics (ID = 673695) Television Portarama MK 2; Perdio Electronics (ID = 673698) Television
Portarama MK 2; Perdio Electronics (ID = 673696) Television Portarama MK 2; Perdio Electronics (ID = 196172) Television
Portarama MK 2; Perdio Electronics (ID = 471852) Television Portarama MK 2; Perdio Electronics (ID = 673694) Television
Portarama MK 2; Perdio Electronics (ID = 673697) Television
Use red slider bar for more.

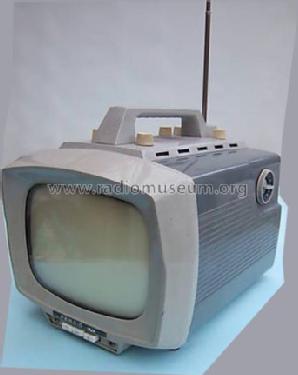

Portarama MK 2; Perdio Electronics (ID = 673695) Television
Perdio Electronics: Portarama MK 2 [Television] ID = 673695 343x431
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portarama MK 2, Perdio Electronics Ltd.; London:
Ebay GB auction 380165294857

Country:  Great Britain (UK)
Manufacturer / Brand:  Perdio Electronics Ltd.; London
Year: 1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 2: DY86 AW21-11
Semiconductors (the count is only for transistors) 26: AF102 AF102 AF102 AF114 AF102 AF102 AF117 AF118 OC71 OC44 AF102 OC81 OC81 OC81 OC28 OC71 OC82D OC82 OC82 OC44 OC81 AC128 AU101 OC81 OC81 OC26
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 205; 225; 245 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.35 W (undistorted)
from Radiomuseum.org Model: Portarama MK 2 - Perdio Electronics Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10.5 x 10.5 x 13.25 inch / 267 x 267 x 337 mm
Notes Perdio Portarama (Portorama) MKII;
405 lines portable TV with 8.5" CRT, 12 channel GB standard VHF tuner.
First series of GB made full transistorized TV sets. (+ 1 HV rectifier tube).
Net weight (2.2 lb = 1 kg) 17 lb 0 oz (17 lb) / 7.718 kg
Price in first year of sale 56.00 GBP
Collectors' prices
Circuit diagram reference Radio and TV Servicing books (R&TVS) book
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1652/T258 dated 16 May 1964)
Literature/Schematics (2) - - Manufacturers Literature (Perdio Portorama Mk 2 Service Manual)
Literature/Schematics (4) -- Schematic

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Perdio Electronics Ltd.; London
Here you find 52 models, 40 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
