PR25; Perdio Electronics (ID = 252175) Radio
Perdio Electronics: PR25 [Radio] ID = 252175 600x450
Select picture or schematic to display from thumbnails on the right and click for download.

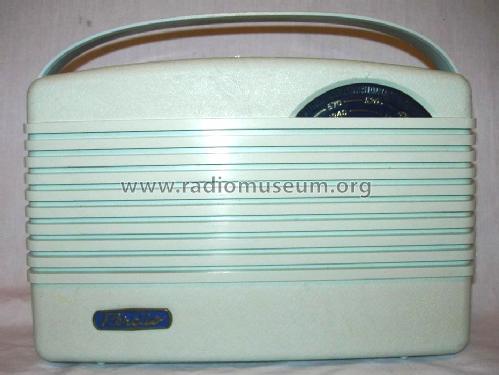

For model PR25, Perdio Electronics Ltd.; London:
A Perdio PR25 with a Realistic badge on the front. These were sold as 'Realistic Seven' kits for radio enthusiasts to build themselves from Laskys stores in London for £5 19s 6d in 1965. Note that this Realistic brand name has no connection whatsoever with Tandy.

Country:  Great Britain (UK)
Manufacturer / Brand:  Perdio Electronics Ltd.; London
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: OC44 OC45 OC45 OC71 OC81D OC81 OC81
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: PR25 - Perdio Electronics Ltd.;
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 10 x 7 x 3.5 inch / 254 x 178 x 89 mm
Notes Released March 1961 price £13 19s 6d. Released as a kit in 1965 called the 'Realistic Seven' price £5 19s 6d.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 14.00 GBP
Source of data Radio! Radio!
Literature/Schematics (1) - - Manufacturers Literature

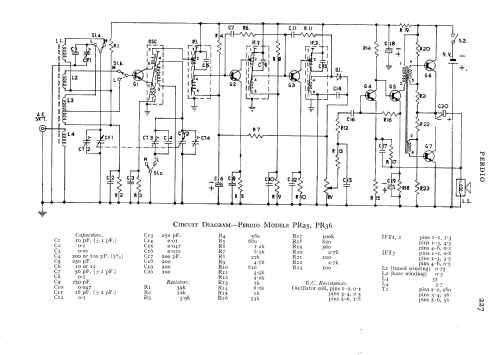

Literature/Schematics (2) Trader sheet 1586

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
