534 Ch= PE-C 3310

534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141679) R-Player 534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141680) R-Player
534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141681) R-Player 534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141682) R-Player
534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141683) R-Player
Use red slider bar for more.

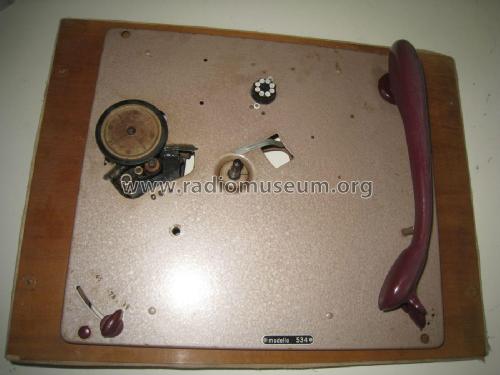

534 Ch= PE-C 3310; Perpetuum-Ebner PE; (ID = 2141679) R-Player
Perpetuum-Ebner PE;: 534 Ch= PE-C 3310 [R-Player] ID = 2141679 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 534 Ch= PE-C 3310, Perpetuum-Ebner (PE); St.Georgen

Country:  Germany
Manufacturer / Brand:  Perpetuum-Ebner (PE); St.Georgen
Year: 1952 ? Category: Sound/Video Recorder and/or Player
Main principle Export model
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 534 Ch= PE-C 3310 - Perpetuum-Ebner PE; St.Georgen
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 325 x 65 x 295 mm / 12.8 x 2.6 x 11.6 inch
Notes

Perpetuum Ebner Modello 534 - giradischi 3 velocità (33-45-78 giri).
3-speed record player with crystal pick-up

Export model, compare with similar chassis PE-C 3310 or Symphonie 3310-PE.
Made in Germany.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
