• Country
• Germany

• Manufacturer / Brand
• Peter, August,Tonmöbelfabrik; Plauen/Vogtl. (Ostd.)

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73590

• • Brand: VEB Tonmöbel

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Junior 3 - Peter, August,Tonmöbelfabrik;

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 730 x 710 x 365 mm / 28.7 x 28 x 14.4 inch

• Notes

• Radio-Chassis Transmiranda.

  Vorbereitet zur Aufnahme des Plattenspieler-Chassis Perfekt 006.

• Price in first year of sale
• 885.00 Mark

• Source of data

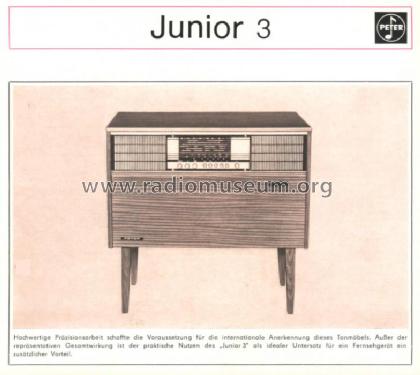

• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
