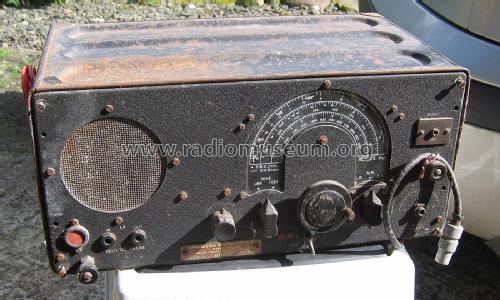

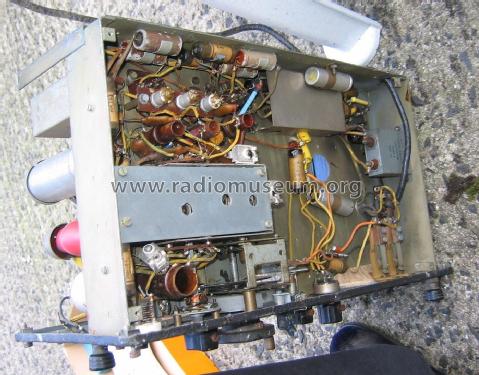

Philips Electrical,: Communication Reveiver P.C.R. ZA26707 [Commercial Re] ID = 1774899 1400x1026

Select picture or schematic to display from thumbnails on the right and click for download.

For model Communication Reveiver P.C.R. ZA26707, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:

Great Britain (UK)

Manufacturer / Brand:

Philips Electrical, Lamps, Industrial - Miniwatt; London

Year: 1944

Category: Commercial Receiver (may include amateur bands)

Valves / Tubes

6: EF35 ECH35 EF39 EF39 EBC33 EL32

schematic requested

Main principle	Superhet with RF-stage; ZF/IF 465 kHz
Wave bands	Broadcast, Long Wave and Short Wave.
Details
Power type and voltage	Powered by external power supply or a main unit. / AC: 12 & DC: 250 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out	2.5 W (unknown quality)
from Radiomuseum.org	Model: Communication Reveiver P.C.R. ZA26707 - Philips Electrical, Lamps,
Material	Metal case
Shape	Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD)	440 x 200 x 250 mm / 17.3 x 7.9 x 9.8 inch
Notes	Receiver for mobile or airborne purposes, shortwave coverage 5,8-18 MHz. AM, CW (BFO). Needs external power supply ZA26706 (for AC) or ZA26705 (vibrator unit). Alternative tube layout: ARP34 ARTH2 ARP34 ARP34 AR21 VT52 (Army designations) The original P.C.R. designed by Pye has been built under contract by Philips. See also later variants without internal speaker.
Net weight (2.2 lb = 1 kg)	10.5 kg / 23 lb 2 oz (23.128 lb)
Mentioned in	Wireless for the Warrior Vol.3

Model page created by Rudolf Sperl. See "Data change" for further contributors.
