402; Philco Radio of (ID = 316478) Radio
Philco Radio of: 402 [Radio] ID = 316478 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model 402, Philco Radio of Argentina; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Philco Radio of Argentina; Buenos Aires
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12AV6 12BA6 12BE6 35W4 50C5
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 402 - Philco Radio of Argentina;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 190 x 130 mm / 11.2 x 7.5 x 5.1 inch

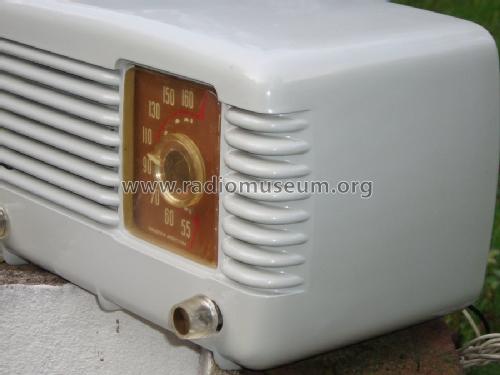

Notes Ivory color bakelite case.

Model page created by Bernardo Henze. See "Data change" for further contributors.



All listed radios etc. from Philco Radio of Argentina; Buenos Aires
Here you find 19 models, 17 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
