• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167342

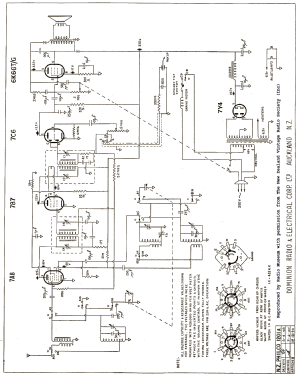

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Philco 1201A - Dominion Radio & Electrical
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • This model appears in a list compiled by John Stokes during his research into the history of New Zealand radio.

    5-valve superhet table radiogram

    Philco M7 record player incorporating the "Throw-in-and-play" principle

    Subtle upgrade of the Model 1201

  • Price in first year of sale
  • 57.50 £
  • Literature/Schematics (1)
  • -- Original prospect or advert (Press 29 June 1949 Page 8)
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
