For model 144B (144, 144E) Late, Philco, Philadelphia Stg. Batt. Co.; USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 78 78 75 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: 144B [Late] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 405 x 490 x 285 mm / 15.9 x 19.3 x 11.2 inch
Notes The Philco 144 series was a follow-on to the model 44 series of all-wave radios. The model 144 chassis has six tubes and covers BC to 23 MHz in four bands. It has a shadow meter (tuning aid) and a four position tone control. The standard 144 chassis was designed for 115 VAC 50-60 Hz, and the 144E export version (code 125) of the chassis was designed for 230 VAC 50-60 Hz.

There are six individual models in the series with different cabinet styles. The early version (1934) of the 144B table radio is a cathedral with scalloped top. The late version (1935) of 144B is a shouldered tombstone having a lyre-shaped speaker opening with three vertical bars through the center of the opening.

Model 144H (1934-35) is a highboy with six legs and a Y-shaped speaker opening with vertical bars. Model 144D (1934) is a similar highboy design with doors.

The early version (1934) of the 144X floor-type console has a classical design, with three round pillars in front of the inclined sounding board. The late version (1934-35) of 144X has a somewhat more modern design with three square fluted pillars in front of the speaker and an emblem at the top center of the cabinet.
Net weight (2.2 lb = 1 kg) 14.8 kg / 32 lb 9.6 oz (32.599 lb)
Price in first year of sale 70.00 $
Source of data Philco Radio 1928-1942

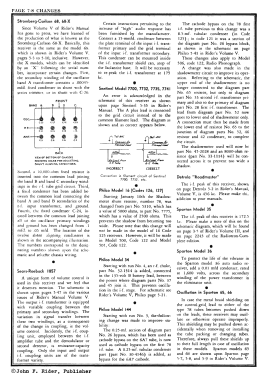

Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before

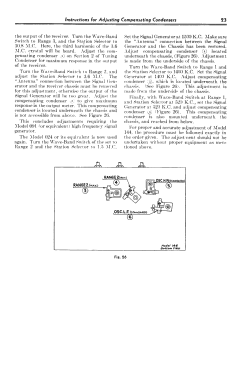

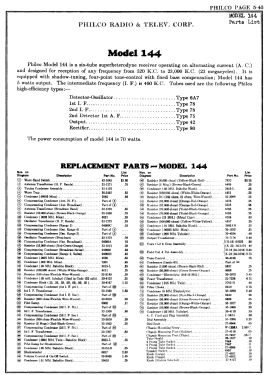

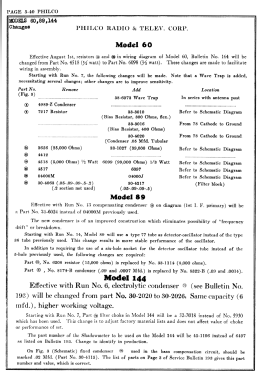

Literature/Schematics (1) Philco Service Bulletin # 193; Philco Wiring Diagrams, Parts Lists, and Essential Serv. Data 1928-36
