22D5100L Ch= TV-123
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 259512

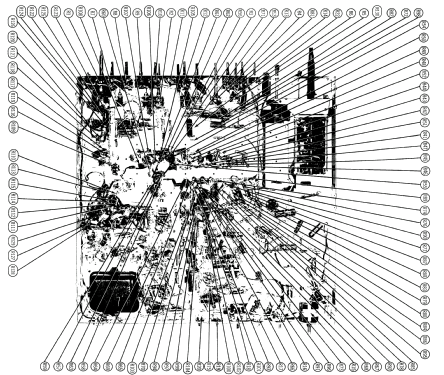

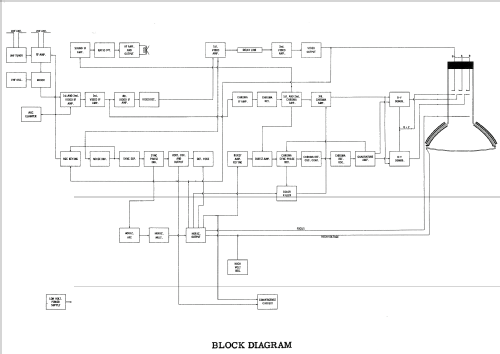

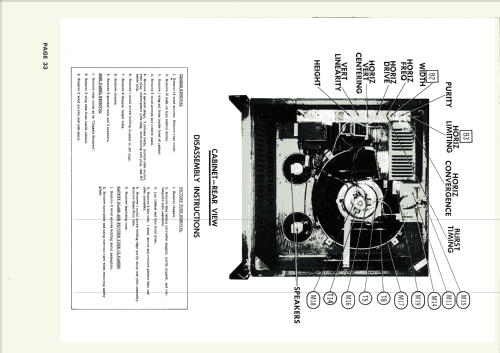

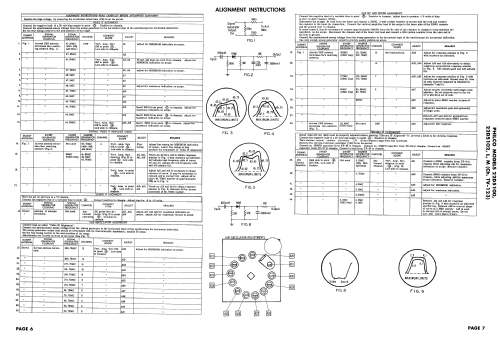

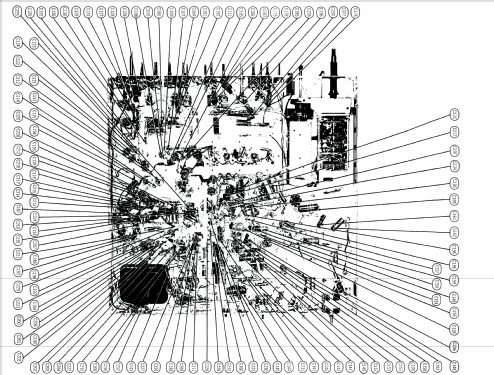

Picture from service manual.

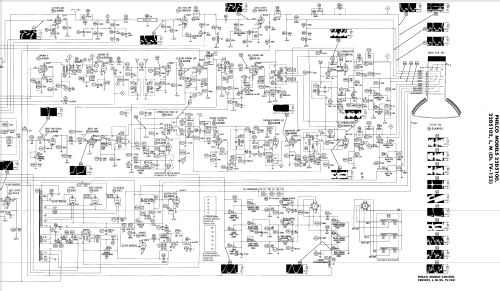

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 34
- Valves / Tubes
- 6AF4A X155 6X8 6BZ6 6BZ6 6CB6 6AS8 6AN8 12BH7A 6AN8 6AS8 6AW8 6AU6 6T8 6V6GT 12AT7 6BJ8 6BA8 6AV5GT 6BA8 6CL5 6M3 3A2 3A2 3A3 6BK4 6AN8 6AN8 6CL6 12BH7A 5V3 5U4GB 21AXP22
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60cycles, 110-120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- from Radiomuseum.org
- Model: 22D5100L Ch= TV-123 - Philco, Philadelphia Stg. Batt
- Notes
-
The Philco 22D5100L is a 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. Equipped with chassis TV-123 and picture tube 21AXP22. Uses Qty(2) PM 8" speakers.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 349 Folder 9)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
