40-526P Radio-Phonograph

40-526P Radio-Phonograph; Philco, Philadelphia (ID = 484532) Radio
40-526P Radio-Phonograph; Philco, Philadelphia (ID = 364467) Radio 40-526P Radio-Phonograph; Philco, Philadelphia (ID = 364073) Radio
40-526P Radio-Phonograph; Philco, Philadelphia (ID = 363874) Radio 40-526P Radio-Phonograph; Philco, Philadelphia (ID = 364346) Radio
40-526P Radio-Phonograph; Philco, Philadelphia (ID = 363873) Radio 40-526P Radio-Phonograph; Philco, Philadelphia (ID = 363872) Radio
Use red slider bar for more.
40-526P Radio-Phonograph; Philco, Philadelphia (ID = 364467) Radio
Philco, Philadelphia: 40-526P Radio-Phonograph [Radio] ID = 364467 434x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 40-526P Radio-Phonograph, Philco, Philadelphia Stg. Batt. Co.; USA:
Lid raised to manually operate the installed single-play 78rpm turntable

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 7C7 7A8 7B7 7C6 7B5 7Y4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: 40-526P Radio-Phonograph - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 26.9 x 39.3 x 16.8 inch / 683 x 998 x 427 mm
Notes Model 40-526P features six pushbuttons - 5 for selectable automatic tuning; 1 to select "manual" tuning. This model is similar to model 40-525P, except that it has a different cabinet and uses a manual phonograph rather than an automatic record changer. Radio chassis similar to model 40-135T.
Net weight (2.2 lb = 1 kg) 30.1 kg / 66 lb 4.8 oz (66.3 lb)
Price in first year of sale 80.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

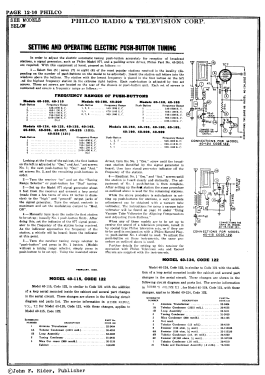

Circuit diagram reference Rider's Perpetual, Volume 12 = ca. 1941 and before
Mentioned in Philco Radio 1928-1942
Literature/Schematics (1) Philco 1940 RMS Year Book
