• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 50717

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• XXL XXL 7B7 7B7 7C6 7B5 7Y4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 41-246T - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 16.6 x 11.8 x 9.13 inch / 422 x 300 x 232 mm

• Notes
• Model 41-246T has two IF stages.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference

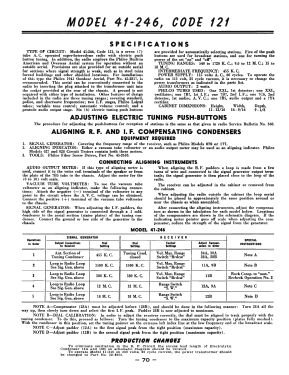

• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Philco Radio 1928-1942 (Philco 1941 RMS Year Book)
