• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98252

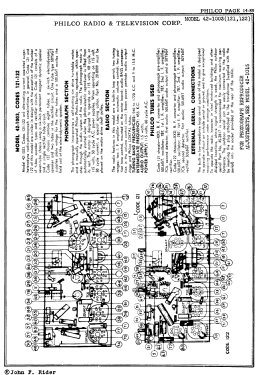

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• XXD 50L6GT 7B7 7B7 7C6 50L6GT 50Y6GT 50L6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 42-1003P Radio-Phonograph [Code 122] - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes
• Model 42-1003 uses Philco's "Beam of Light" phonograph pickup with a manual turntable. Codes 121 and 122 are similar in design except for the speakers, number of tubes and rectifier circuit.

• Price in first year of sale
• 60.00 $

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1942 RMS Year Book

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
