48-1266 Radio-Phonograph
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 101015
Scanned from the Philco Folder for 1948.
SAMS Photofact
Scanned from the Philco Folder for 1948.

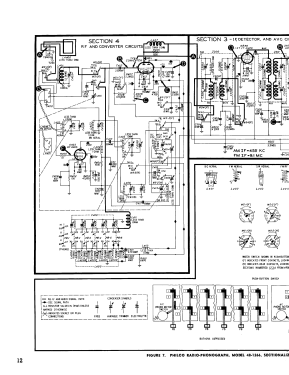

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/9100 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 48-1266 Radio-Phonograph - Philco, Philadelphia Stg. Batt
- Shape
- Console with any shape - in general
- Notes
-
Cabinet is wood with walnut finish. Automatic record changer is model D-10.
- Literature/Schematics (1)

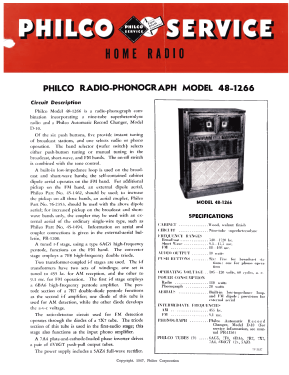

- Philco Service Home Radio
- Literature/Schematics (3)
- Philco Folder for 1948.
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 39, Date 5/48, Folder 489-15)
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
