- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID

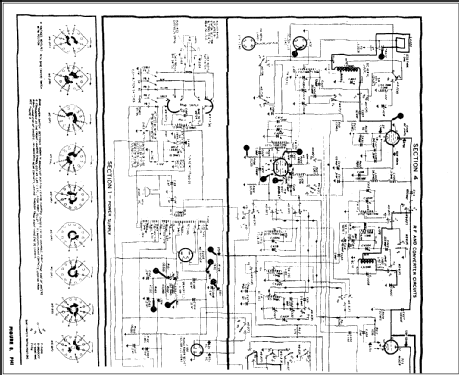

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 15 W (unknown quality)
- Wooden case
- from Radiomuseum.org

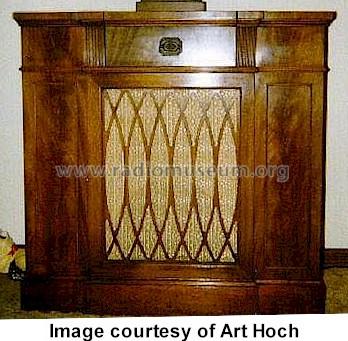

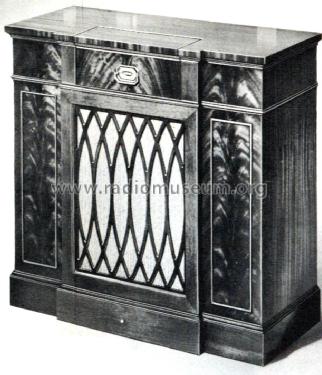

- Model: 48-1274 - Philco, Philadelphia Stg. Batt
- Console with Push Buttons.
Motor driven tuning; same chassis in Model 48-1276;
AC Operated Combination Phono-Radio 2 and AM-FM Superheterodyne Receiver.
AM 540-1720kc and Short wave 9.25-15.5Mc.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition

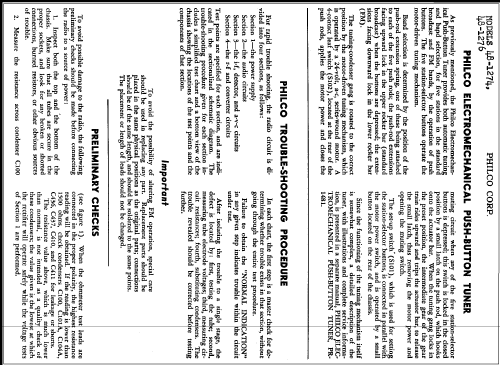

- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Literature/Schematics (3)

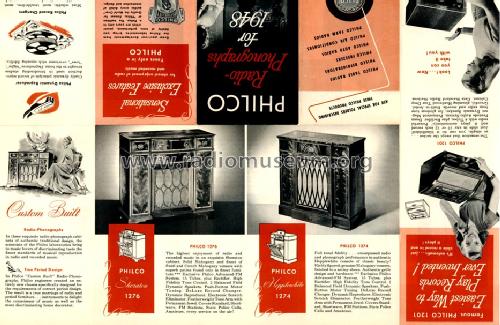

- Philco Folder for 1948 and for 1949.
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 41, Date 5/48, Folder 4811-17)
- Other Models
Here you find 3872 models, 2174 with images and 3371 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Forum contributions about this model: Philco, Philadelphia: 48-1274
Threads: 1 | Posts: 3
Hello, I'm restoring a Philco 48-1274. I am having no luck finding the start and run caps the small electric motor needs for the auto tuning. I have searched on the internet but have found nothing that will work as a replacement. I was hoping someone here can help and point me in the right direction to order some replacements. I need two. Both rated the same. Thanx Much!! Troy.
Troy Woods, 25.Nov.18
