48-464 ; Philco, Philadelphia (ID = 51146) Radio

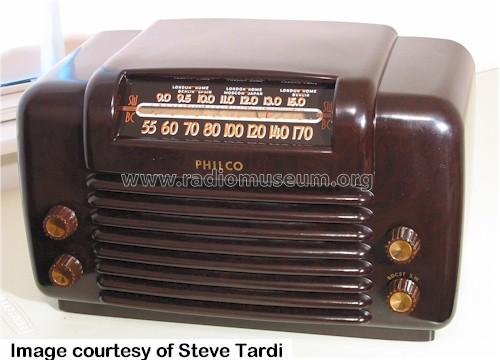

Philco, Philadelphia: 48-464 [Radio] ID = 51146 500x360
Select picture or schematic to display from thumbnails on the right and click for download.
For model 48-464, Philco, Philadelphia Stg. Batt. Co.; USA:
Copy gen. von Steve Tardi Radio Attic

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner

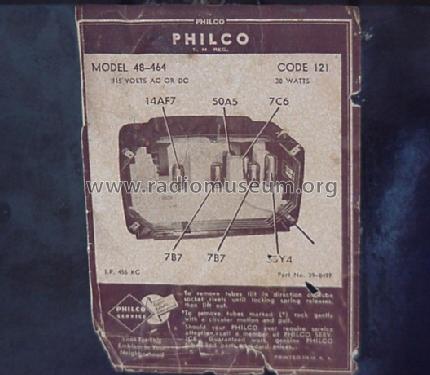

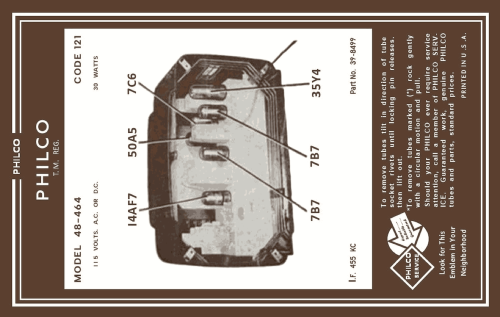

Valves / Tubes 6: 14AF7 7B7 7B7 7C6 50A5 35Y4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 48-464 - Philco, Philadelphia Stg. Batt
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15.5 x 9.5 x 8.5 inch / 394 x 241 x 216 mm
Notes

Also see the similar Canadian model, Philco 76.

External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 26, Date 10/47, Folder 4716-20)
