50-T1432 (Code 124)
Philco, Philadelphia Stg. Batt. Co.; USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philco, Philadelphia Stg. Batt. Co.; USA
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 340703
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6BC5 6J6 6BC5 6BC5 6BC5 6BC5 12AU7 6V6GT 6BA6 6AU6 6T8 6AQ5 6SN7GT 6SN7GT 6SN7GT 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 12LP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 50-T1432 - Philco, Philadelphia Stg. Batt
- Shape
- Tablemodel, with any shape - general.
- Notes
-

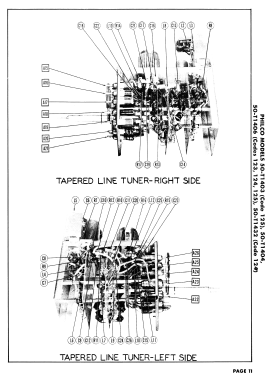

Philco model 50-T1432 (Code 124) is a 12” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF- tuner 76-5433-1 or 76-5411-1 and picture tube 12LP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 115, Folder 8 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 4225 models, 2246 with images and 3871 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
Forum contributions about this model: Philco, Philadelphia: 50-T1432
Threads: 1 | Posts: 2
I have a Philco 50-T1432-122 with a horizontal oscillator drift problem. After 5-10 minutes of operation, the horizontal sync will drift beyond the controls ability to stabilize. Does anyone have experience with this problem and solution?
Gary Thornton, 25.Jan.26
