• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 345274

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115V Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

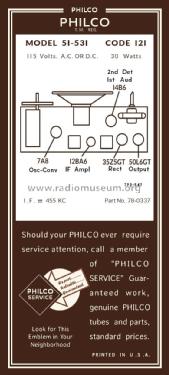

  • Model: 51-531 Transitone - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Author
  • Model page created by Ron Carroll. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model 51-531 is part of the collections of the following members.
