52-940

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 51046

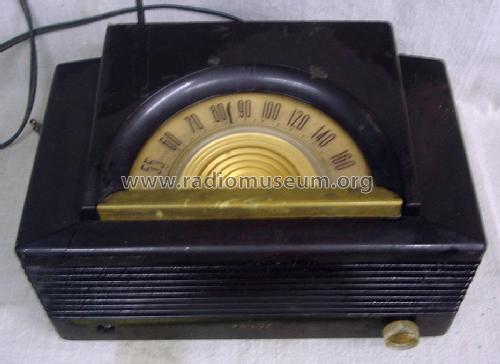

• Picture

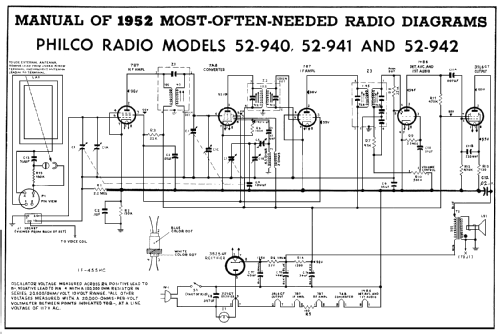

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 7B7 7A8 7B7 14B6 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / AC/DC 117=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 52-940 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 340 x 196 x 192 mm / 13.4 x 7.7 x 7.6 inch

• Notes

• Philco model 52-940 is an AC-DC operated superheterodyne receiver with loop antenna.
  Colour: Mahogany or Gray, Power consumption: 30 W.



• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 12, 1952

• Mentioned in
• Rider's Perpetual, Volume 23 (last) = covering up to 1954

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-52, Set 156, Folder 9)

• Literature/Schematics (2)
• Table Top Radios Vol. 1 Stein 98 (page 124.)

• Literature/Schematics (3)
• Philco Folder 180-3436 for 1952.
