• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85802

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7A8 7B7 7C6 35L6GT 50Y7GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

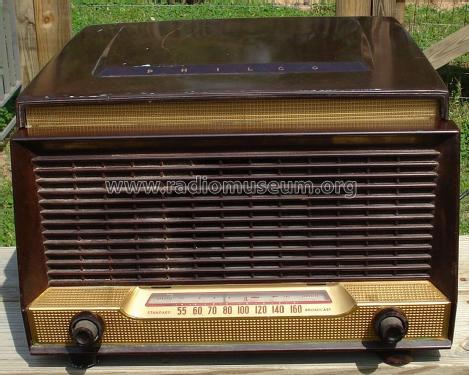

• Model: 53-1350 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 13, 1953

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 13, 1953

• Author
• Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
