For model 54C 54 Late, Philco, Philadelphia Stg. Batt. Co.; USA:

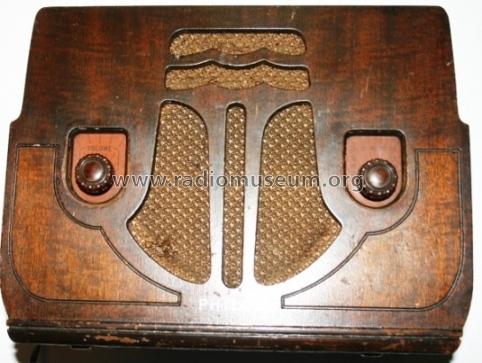

Front

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1935/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 43 25Z5
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage AC/DC-set / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 54C 54 [Late] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Notes The model 54 series are compact upright table radios, referred to as "pee-wee" or "cigar box" designs because of their compactness. The 54C early version (1933) has a wood front with vertical bars through the speaker opening. The 54C middle version (1934) is similar to the early version, but has a photofinish front with faux inlay and burl patterns. The 54C late version (1935) has a wood front with a "wave" pattern at the top of the speaker opening. The 54S early version (1934-35) has the front appearance of an "owl". The 54S late version (1935) has a spoked arch speaker opening. All versions have 2 bands and lighted dial.
Price in first year of sale 30.00 $
External source of data Ernst Erb
Source of data Guide to Old Radios

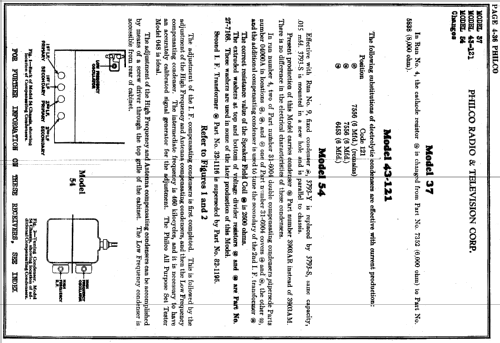

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Table Top Radios Vol. 1 Stein 98 (Philco Radio 1928-1942, Ramirez)

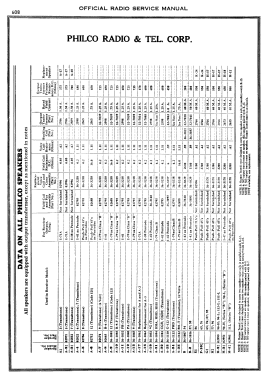

Literature/Schematics (1) Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data
Literature/Schematics (2) Machine Age to Jet Age II (page 211.)
