54C Middle

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103657

• Picture

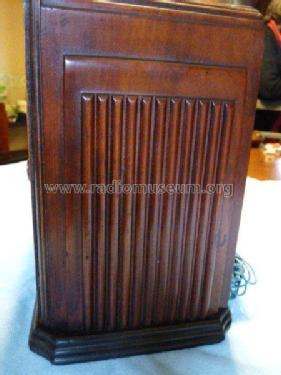

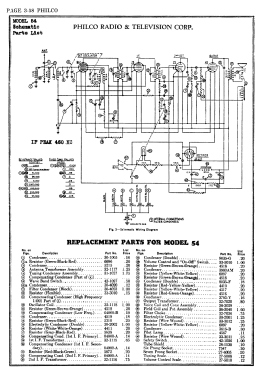

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 78 75 43 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast (MW), Police, sometimes also early TV (75-200m).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 14 cm = 5.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 54C [Middle] - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 305 x 230 x 140 mm / 12 x 9.1 x 5.5 inch

• Notes

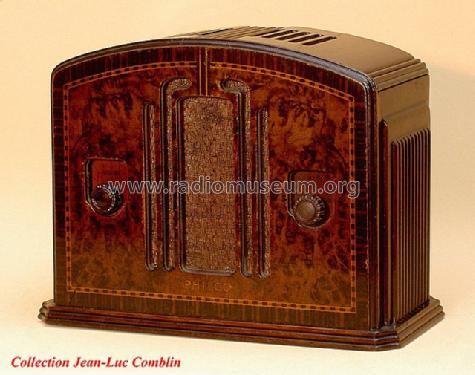

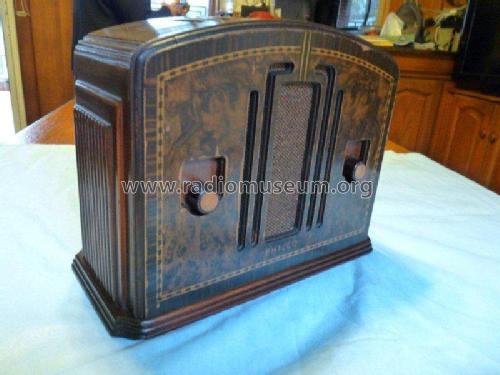

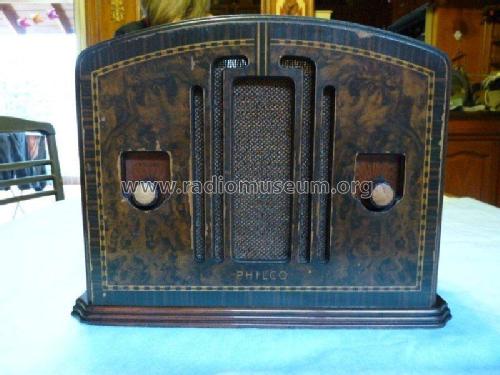

• The model 54 series are compact upright table radios, referred to as "pee-wee" or "cigar box" designs because of their compactness. The 54C early version (1933) has a wood front with vertical bars through the speaker opening. The 54C middle version (1934) is similar to the early version, but has a photofinish front with faux inlay and burl patterns. The 54C late version (1935) has a wood front with a "wave" pattern at the top of the speaker opening. The 54S early version (1934-35) has the front appearance of an "owl". The 54S late version (1935) has a spoked arch speaker opening. All versions have 2 bands and lighted dial.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 25.00 $

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)
• Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 211.)

• Literature/Schematics (3)
• Philco Folder for 1933/34.

• Literature/Schematics (4)
• Spiegel Catalogs (Aircastle) (Spring/Summer 1934, No. 137, page 178.)
