60B ; Philco, Philadelphia (ID = 2234197) Radio

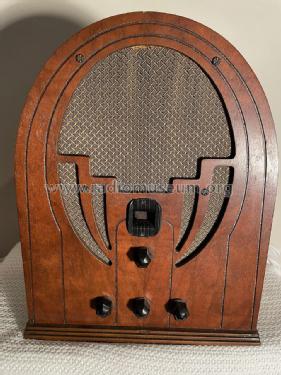

Philco, Philadelphia: 60B [Radio] ID = 2234197 1400x1882
Select picture or schematic to display from thumbnails on the right and click for download.
For model 60B Version 4, Philco, Philadelphia Stg. Batt. Co.; USA:
Radio has been refinished, but grill cloth is original

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 78 75 42 80
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast (MW), Police, sometimes also early TV (75-200m).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 60B [Version 4] - Philco, Philadelphia Stg. Batt
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Notes The Philco model 60 series included nine versions over four years, all using similar 5-tube chassis.

There were six versions of the 60B cathedral. Version 1 (1933) had the simpler flat-front version of the classic cathedral cabinet with spade-shaped speaker grill which was used on many 1933 models. Version 2 (1934) had three vertical bars through the center of the center of the speaker grill, with short downward curving arcs added at the bottom of the speaker. Versions 3 and 4 (1934-35) had similar cabinets with an oval shaped speaker grill with a stair-step pattern; version 3 had a metal escutcheon with "Philco" stamped into the metal, and version 4 had a black bakelite escutcheon with a "Philco" decal on the center of the wooden front. Version 5 (1935) had the same cabinet as versions 3 and 4, but with a larger black bakelite escutcheon and a new dial scale design. Version 6 (1936) was a new style cabinet with a continuous arch from the base of the cabinet.

Model 60MB (1934) was a tombstone with a modern design, having three downward facing arcs through the speaker grill and hexagonal knobs.

Model 60L (1933-35) was an ornate lowboy with four vertical bars through the speaker grill and other embellishment.

Model 60F (1935-36) was a floor-type console with a tulip-shaped speaker grill.

The general spirit of the model 60 series continued into 1937 and 1938 with models 37-60 and 38-60, which were also 5-tube 2-band radios.
Price in first year of sale 30.00 $
Source of data Philco Radio 1928-1942
Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before
Literature/Schematics (1) Philco 1928-36 Wiring Diagrams, Parts Lists, and Essential Service Data

Model page created by Thomas Albrecht. See "Data change" for further contributors.



All listed radios etc. from Philco, Philadelphia Stg. Batt. Co.; USA
