620B ; Philco, Philadelphia (ID = 338781) Radio

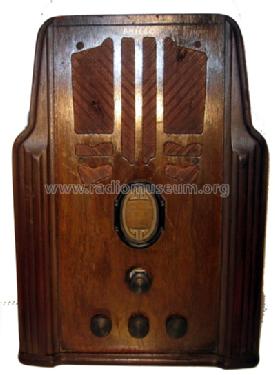

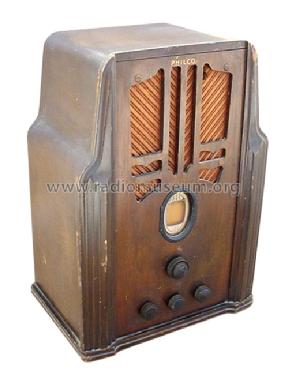

Philco, Philadelphia: 620B [Radio] ID = 338781 501x650
Select picture or schematic to display from thumbnails on the right and click for download.
For model 620B, Philco, Philadelphia Stg. Batt. Co.; USA:
Ebay Nr. 270130884933 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner

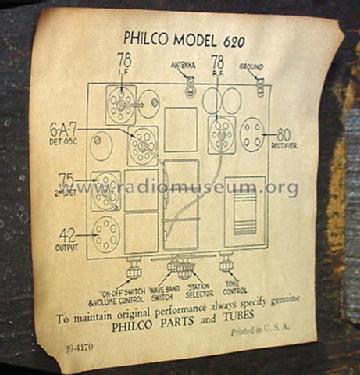

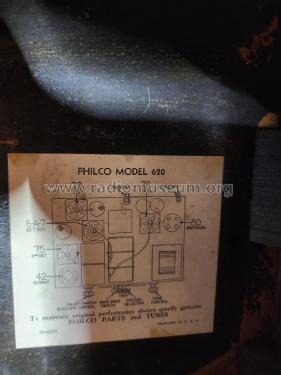

Valves / Tubes 6: 78 6A7 78 75 42 80
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 620B - Philco, Philadelphia Stg. Batt

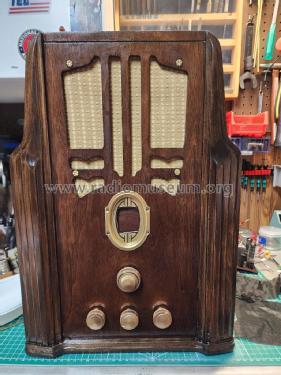

Material Wooden case

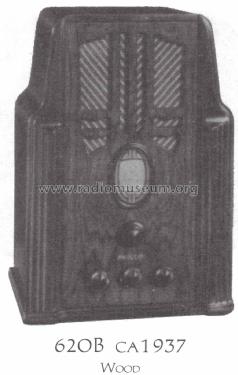

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 13 x 18.5 x 9 inch / 330 x 470 x 229 mm
Notes

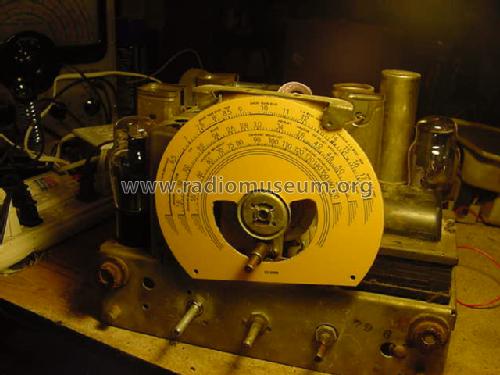

Wave bands: 540-1720 kHz; 1.75-5.8 MHz; 5.7-18.0 MHz.
There is also the console version 620F.

Stein mentions this model as a two bands radio.

Price in first year of sale 50.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition

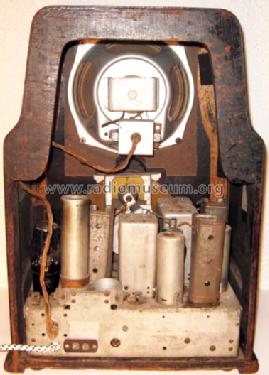

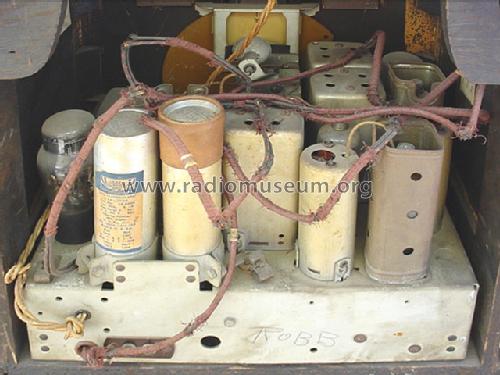

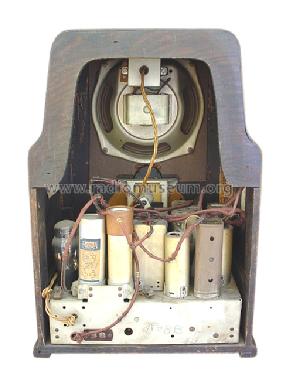

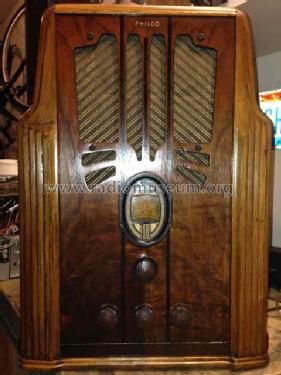

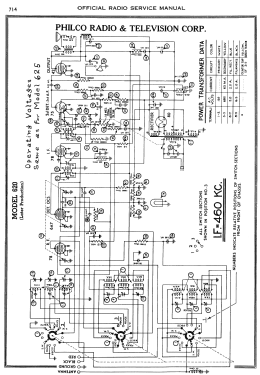

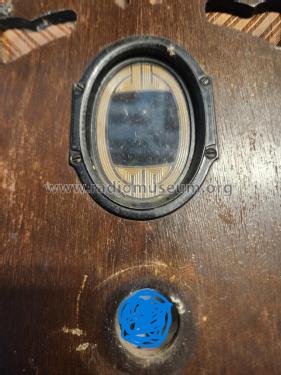

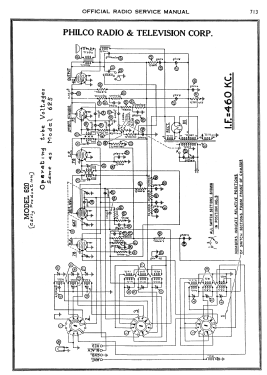

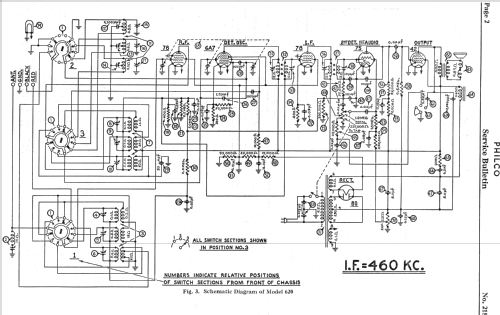

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

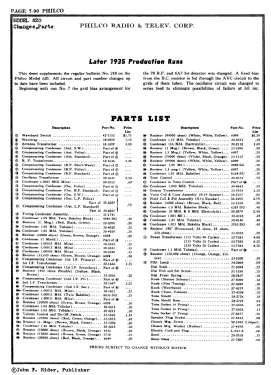

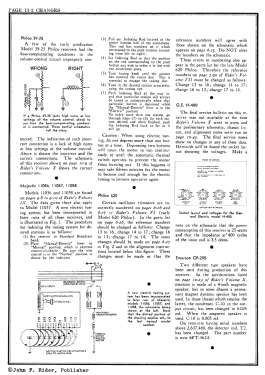

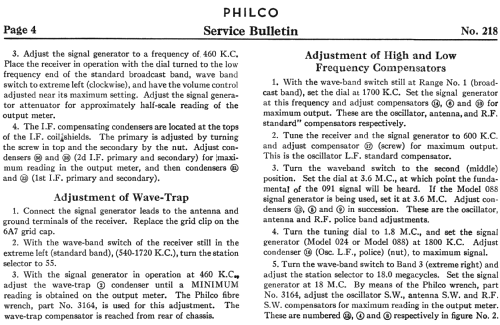

Literature/Schematics (1) Philco Radio 1928-1942 (Philco Service Bulletin # 218; Philco Wiring Diagrams, Parts Lists, and Essential Serv. Data 1928-36)
Literature/Schematics (2) Machine Age to Jet Age II (page 220.)
Literature/Schematics (3) Cathedral & Tombstone Radios (page 195.)
