• Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167350

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

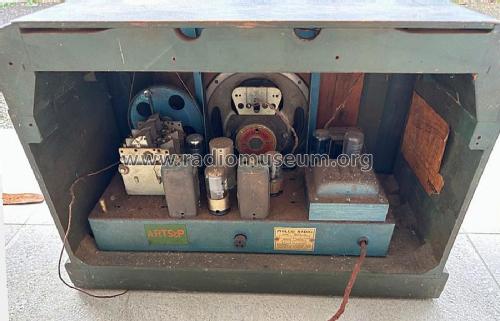

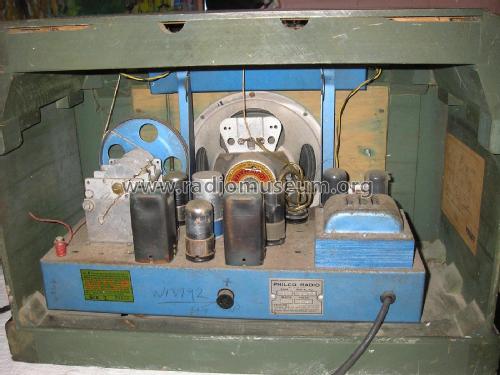

  • Model: Philco 732B - Dominion Radio & Electrical
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 500 x 380 x 260 mm / 19.7 x 15 x 10.2 inch
  • Notes
  • This model appears in a list compiled by John Stokes during his research into the history of New Zealand radio.

    6-valve superhet with RF stage.

    5 band - 2 bandspread.

    Updated version of Model 732 and Model 732A including the use of higher gain 6SK7 valves.

  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
