AR-10 ; Philco, Philadelphia (ID = 267206) Car Radio
Use red slider bar for more.
AR-10 ; Philco, Philadelphia (ID = 267206) Car Radio
Philco, Philadelphia: AR-10 [Car Radio] ID = 267206 446x272

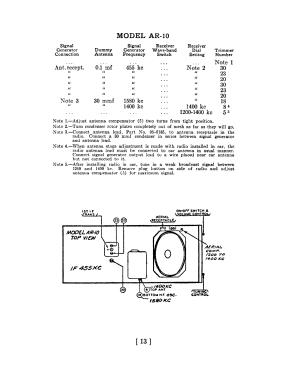

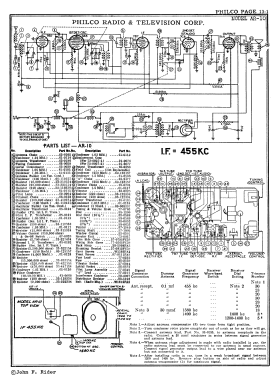

Select picture or schematic to display from thumbnails on the right and click for download.
For model AR-10, Philco, Philadelphia Stg. Batt. Co.; USA:
By courtesy of William Kendrick, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Philco, Philadelphia Stg. Batt. Co.; USA
Year: 1941 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 7B7 7A8 7B7 7C6 7A5 7Y4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AR-10 - Philco, Philadelphia Stg. Batt
Notes This model is equipped with a vibrator for the generatio of B+.
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 13 = 1942 and before
Literature/Schematics (1) Philco 1941 RMS Year Book
