• Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 177779

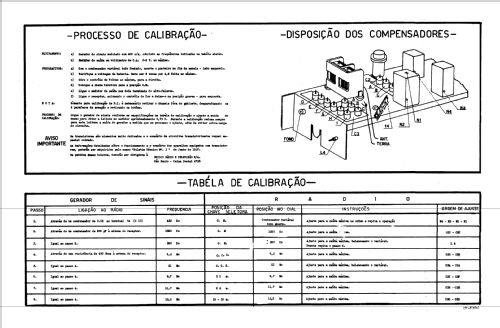

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Storage and/or dry batteries / 10 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B-483 - Philco Rádio e Televisão; São
  • Shape
  • Console with any shape - in general
  • Notes
  • The power supply is splitted in two: 6 batt to the radio 4 batt for the record player
  • Author
  • Model page created by Meyer Rochwerger. See "Data change" for further contributors.
