• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 80945

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105 - 120 Volt

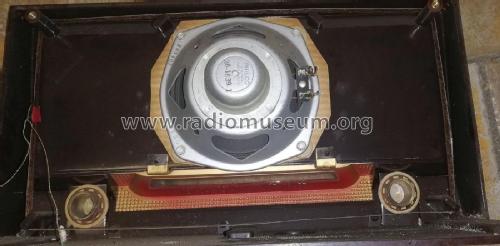

  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • from Radiomuseum.org

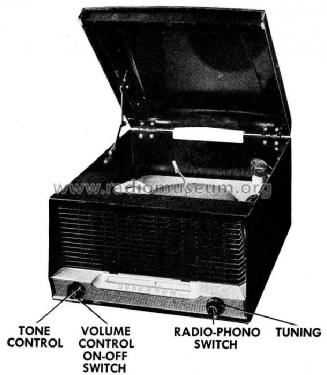

  • Model: C-1348 - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Circuit diagram reference

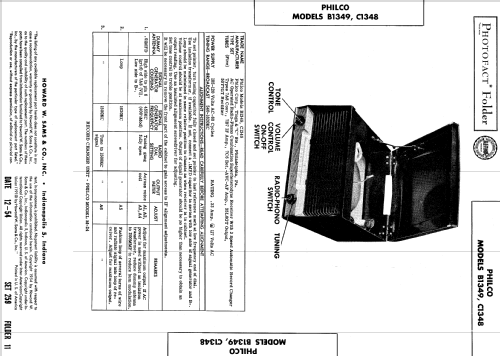

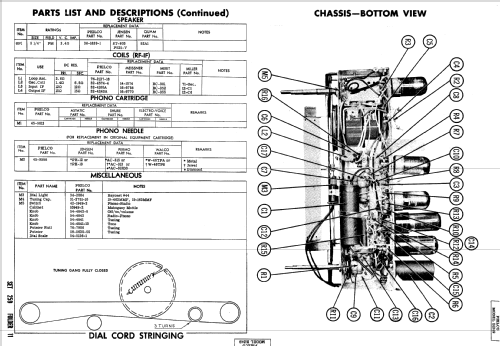

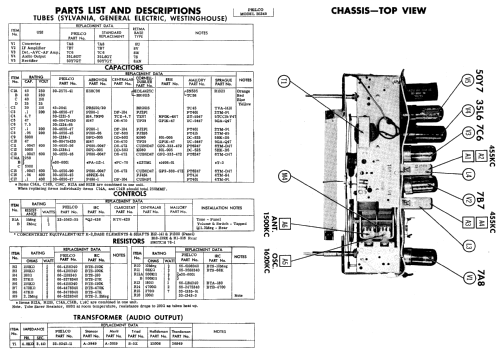

  • Beitman Radio Diagrams Vol. 14, 1954
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
