38-C4 Code 121
Philco Products Ltd.; Toronto
- Country
- Canada
- Manufacturer / Brand
- Philco Products Ltd.; Toronto
- Year
- 1937/1938 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 312626
Canadian Dial Card

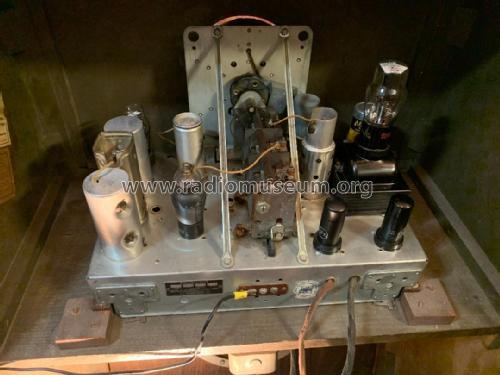

Restored Chassis before reinstallation
Tag information
Chassis reinstalled after overhaul
Rt.side of radio
Radio Lf. side
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 38-C4 Code 121 - Philco Products Ltd.; Toronto
- Shape
- Console with any shape - in general
- Notes
-
Appears to be the direct Canadian version of the US Model 38-4XX.
Factory installed dial has part number 27-5337-178C, with the "C" seeming to designate 'Canada' - which included Canadian presets of the time (CFCF, CKAC, CBF, CBM, CHLP)
- Author
- Model page created by David Clarke. See "Data change" for further contributors.
