- Country
- Canada
- Manufacturer / Brand
- Philco Products Ltd.; Toronto
- Year
- 1950–1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239592
Scanned from the Philco Folder for 1951.
Scanned from the Philco Folder for 1951.

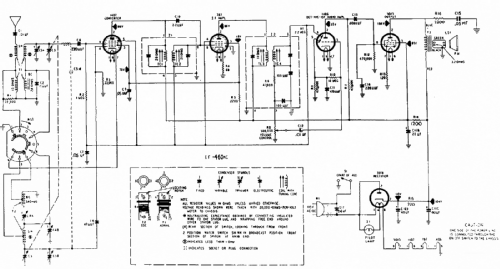

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 105 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.2 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 87 - Philco Products Ltd.; Toronto
- Shape
- Tablemodel, low profile (big size).
- Notes
-
The Canadian Philco model 87 is a 5-tube table radio that covers standard broadcast and 4.7 to 18 MHz shortwave. It requires an external wire antenna for broadcast and shortwave.
Available in pearl-smooth ivory, rich maroon or mottled brown.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 23 page 63)
- Literature/Schematics (3)
- Philco Folder for 1951. Philco Folder "Radio-Phonographs and Table Radios" for ca. 1952.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
