Predicta Holiday G4242L Ch= 9L37

• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 126795

• Picture

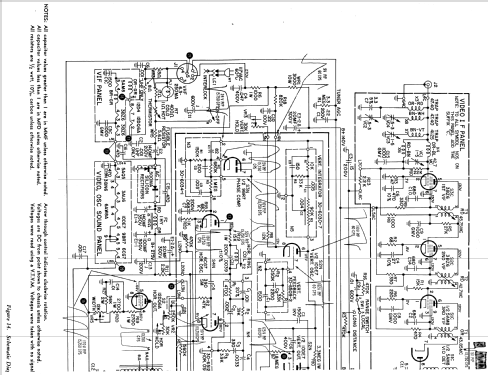

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 5X8 4BC8 3BZ6 5AM8 3AU6 3BN6 12CA5 6AW8A 9BR7 10DE7 6CG7 12DQ6A 1B3GT 12D4 21EAP4 or SF21A

• Main principle
• Superhet with RF-stage; ZF/IF 45750 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Predicta Holiday G4242L Ch= 9L37 - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel, with any shape - general.

• Notes

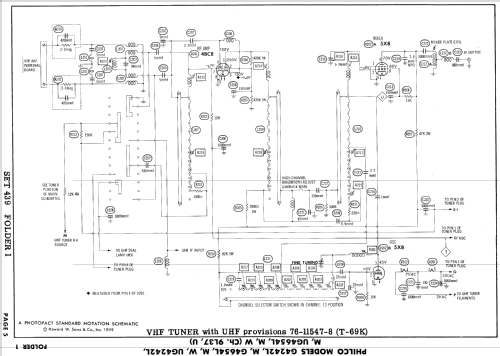

• The Philco G4242L is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 9L37, VHF tuner T-68G and picture tube 21EAP4 or SF21A. Cabinet is Blonde. Swiveling top-mount CRT enclosure. Built-in telescoping antenna.

• Literature/Schematics (1)

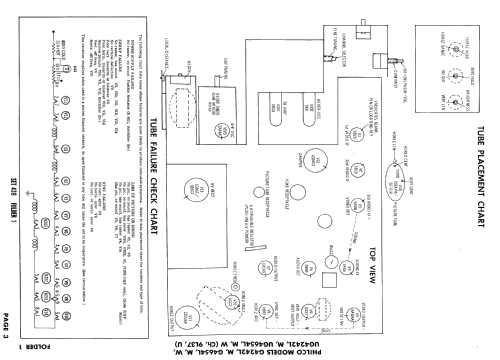

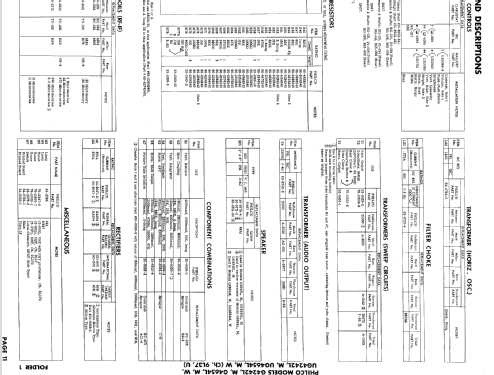

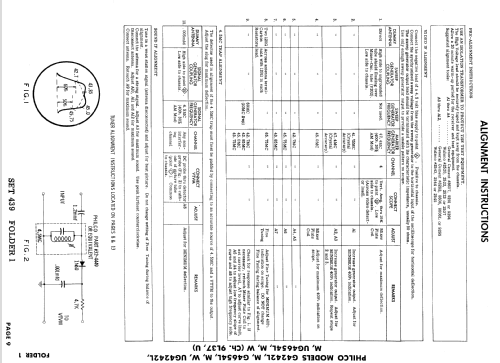

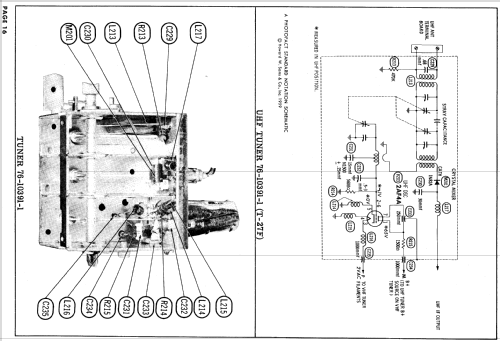

• Photofact Folder, Howard W. SAMS (Set 439 Folder 1 4-1959)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by a member from A. See "Data change" for further contributors.
