• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 51486

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org

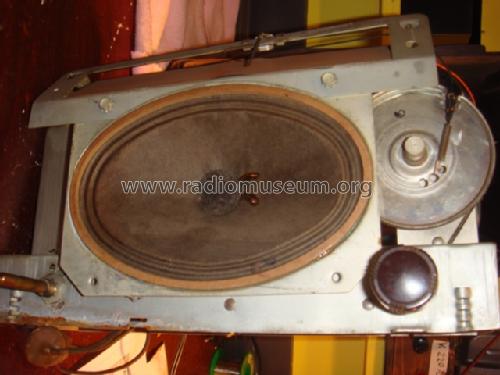

  • Model: PT-2 Transitone - Philco, Philadelphia Stg. Batt
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 11.4 x 7.25 x 6 inch / 290 x 184 x 152 mm
  • Notes
  • Built-in loop Aerial.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
